Description

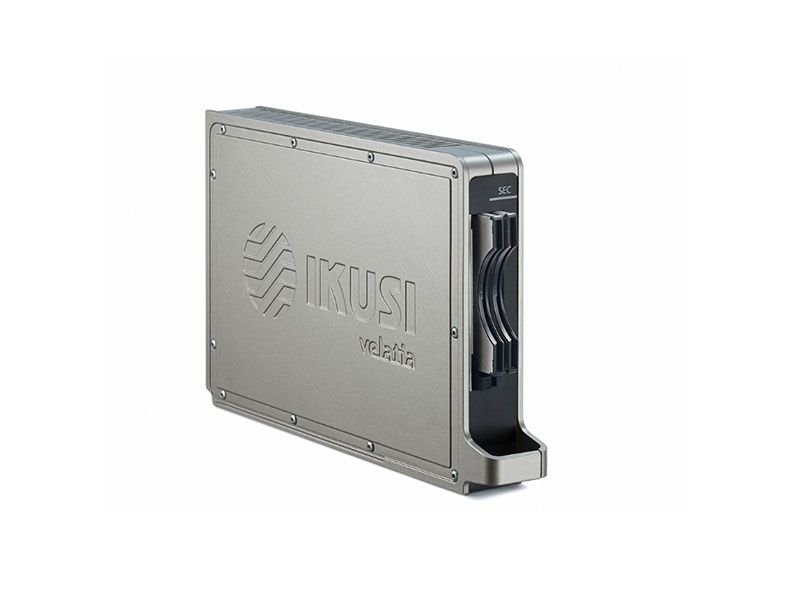

Triax Ikusi Flow SEC Security Module

Module with decryption capacity with 2 CAMs (CAM’s not included)

• Decryption(CAS) and encryption(DRM) in the same module
• 2 Common Interface slots
• Automatic reboot from CAM with decrytion faults
• Support of up to 16 SPTS per CAM

Security module (SEC)
The FLOW SEC decrypts multiple services received from the backpanel of the Ikusi FLOW chassis.
For decrypting services, the FLOW SEC has two Common Interface slots where CAMs may be inserted. The total number of decrypted services depends on the CAM in use, the number of services, and the
quantity of data flowing through the module. The FLOW SEC module can encrypt the services on the output headend

Specifications

Model FLOW-SEC
Ref. 4311
IPTV Inputs/outputs
Interface Gigabit Ethernet
Standard 1000Base-T
VLAN support Yes
Transmission protocols UDP
Common interface
Number of slots 2
Standard EN50221
CAM Warm Reset Yes
CAM Cold Reset Yes
Decryption
Channels of decryption capacity / CAM 2
Output SPTS per CAM 16
Total output SPTS 32
CAM reset on decryption failure Yes
Encryption
Supported DRMs
LG Pro:Idiom
Samsung LINK
Philips VSecure
Simulcrypt interface Yes
Channel of encryption capacity 2
SPTS per channel of encryption
Simulcrypt : 8
LG Pro:Idiom : 12
Samsung LINK : 16
Philips VSecure : 16
General
Power supply VDC 24
Consumption (without CAM) W 5.9
Operating temperature ºC 0 … 45
Weight g 328
Dimensions
(Height x Width x Depth) mm 125 x 27 x 210
