Description

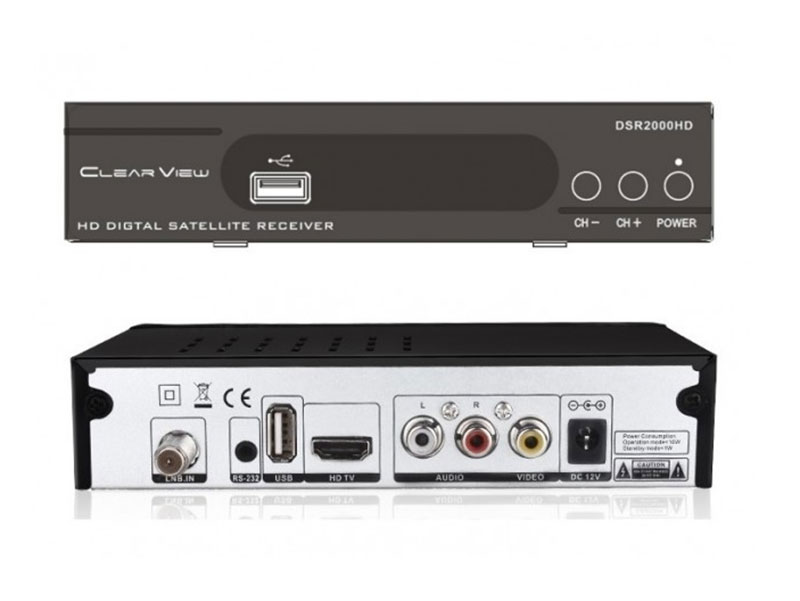

ClearView DSR2000HD FTA Digital Satellite Receiver
Details
Compact small size with External Power Pack.
Note: This receiver will not work on the VAST system. For VAST, you need a specific VAST receiver like the DSD5000.
Features
- Aspect ratio: 4:3/16:9, By Pan & Scan and Letter Box conversion
- Electronic program guide (EPG)
- Software upgrade (OAD or USB)
- Supports Multi-language Audio
- Program editor
- Supports Favorite Group
- USB-WIFI with optional WiFi Dongle
- HDMI lead supplied
- Small Size Only 170 x 90 x 41mm
Specifications
| Hardware | |
|---|---|
| CPU | GX6605S |
| Memory | DDR2 512M bits |
| Flash | 32M bits SPI flash |
| Tuner | RDA5815M |
| Tuner and Demodulation parameter | Frequency Range: 950 ~ 2150 MHz Symbol rate: 1 ~ 45Msps Demodulation: QPSK, 8PSK, 16ASK, 32ASK |
| Size | 170 x 90 x 40mm |
| Power | Consumption in working mode: 10W Max. DC Power input: 12V_1A |
| Accessories | Gift box, IR remote control, User Manual, Battery |
| I/O | 1 * HD TV 2 * USB HOST 1 * RF IN 1 * AV 1 * RF OUT 1 * RS 232 |
| Software | |
| OS | ecos |
| DVB-S/S2 | Advanced HD MPEG2/MPEG4/H.264/VC-1 |
| Video | 1080p/1080i/720p/576p/576i/480p/480i |
| Audio | MP3, AAC, WMA, RM, FLAC, OGG |
| Picture | jpg, JPEG, MJPEG, PNG |
| Aspect ratio | 4:3/4:3LB/4:3PS/16:9/16:9LB/16:9PS |
| Multi-language | English, German, French, Italian, Spanish, Turkish, Portuguese, Arabic, Farsi |
| Low power | Low power standby mode, 3 hours auto standby if no operation |
| OSD | 32bits Friendly OSD menu |
| Scan & DiSEqC | Fast blind scan, auto and manual search, DiSEqC 1.0, 1.1, 1.2, USALS support |
| TTX & Subtitle | VBI and OSD TTX, Subtitle support |
| EPG | Fully support 7 days EPG |
| Parents control | Parents control (programs lock and parental rating) |
| Update | Update SW and database separate by USB |
| USB | USB 2.0 supported, PVR and Timeshift support, FAT16/32 NTFS file system support |
| DOBLY | Hardware decoding (7.1 channel) & Software decoding (5.1 channel) |
| Others | Max 4000 programs, 8 favorite groups, 8 programs Timers, Default database, Database editor on PC |
