Description

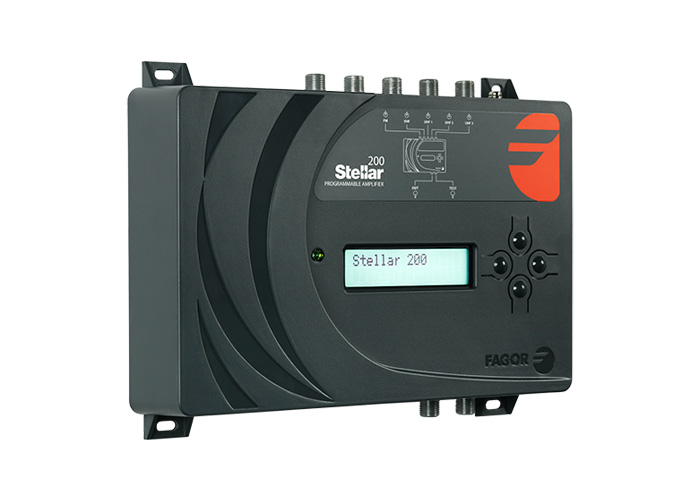

Fagor Stellar 200 Programmable TV Headend Amplifier
Fagor Stellar 200 is a programmable headend with up to 32 output channels that allows processing, converting and amplifying digital TV signals from the terrestrial band.
It is a direct replacement for the Zinwell DCF-1 headend.
Features
• 5 inputs:
• Stellar 200: 1xFM, 1xVHF, 3xUHF.
• Stellar 300: 1xFM, 1xVHF, 2xUHF, 1xSAT
• Up to 32 filters for VHF and UHF with the possibility of
output frequency conversion.
• Automatic search and equalisation of the channels present
at each VHF/UHF input, adding them to the channel list.
• VHF and UHF transponder input level indication.
• CAG with wide dynamic input range (40-108 dBµV).
• Selectable VHF and UHF pre-feedback.
• Selectable VHF / UHF internal pre-amplifier.
• High selectivity and adjacent channel rejection.
• High rejection SAW filters for LTE 2 (5G) band performance.
• Test output (-30dB).
• Programming via keypad or Android application.
• New display with higher brightness and resolution.
• Greater energy efficiency.
• New more advanced and faster autoconfiguration algorithm.
Specifications
Reference 35546
Frequency Band & Inputs: FM x 1, VHF x 1 UHF x 3
Bands: FM 88-108MHz, VHF 174-230MHz, UHF 470-694MHz
Operative input level: FM <78dBµV, VHF <108 dBµV, UHF <108dBµV
No of Filters: 32 Programmable
Return Loss: >10dB
Digital Output Level: 93-115dBµV
Test Output Level: -30dB
Gain: FM: 35dB, VHF & UHF AGC
Tilt: 0-9dB
DC Current Pass: FM: No, VHF& UHF: 12V/100mA (Programmable)
Dimensions: 230 x 218 x 54mm
Weight: 1.04kgs
