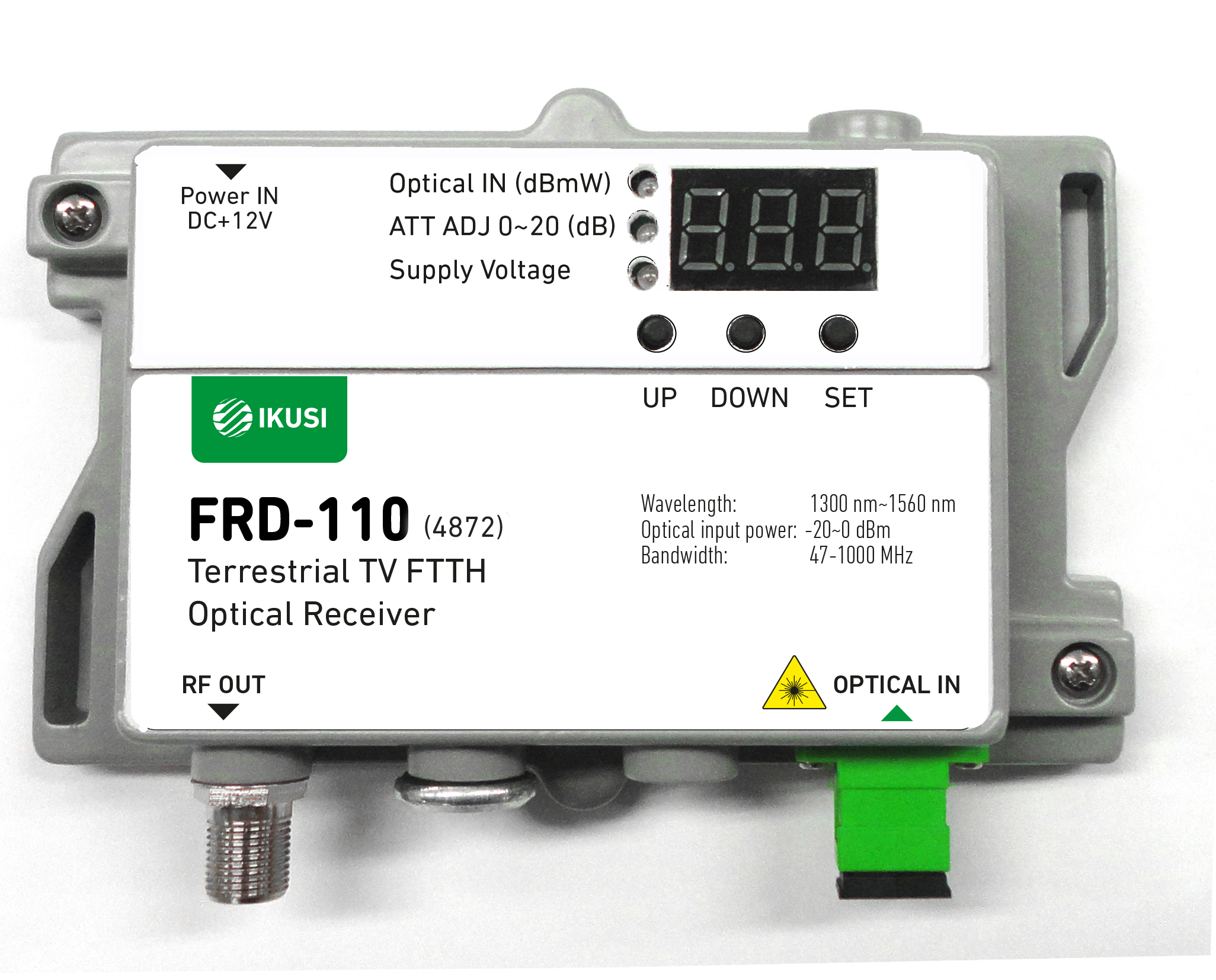

Ikusi FRD-110 Optical Fibre Receiver
Specifications
Frequency range: 45 – 862MHz
Optical wavelength: 1300 – 1560nm
Output level
Input level 0 dBm ≥ 94dBµV
Input level -3 dBm ≥ 88dBµV
Input level -6 dBm ≥ 82dBµV
Input level -9 dBm ≥ 76dBµV
CNR (DVB-T signals) for output level 50dB
Coaxial connector F Type
Optical connectors SC/APC
Optical window -13 … +1dBm
Output attenuation 0 … 20dB
Optical level indicator Yes
Consumption (12V) : 2W
Power supply:12VDC
Dimensions: 130 x 75 x 30mm
Includes 12V Power Pack
