Description

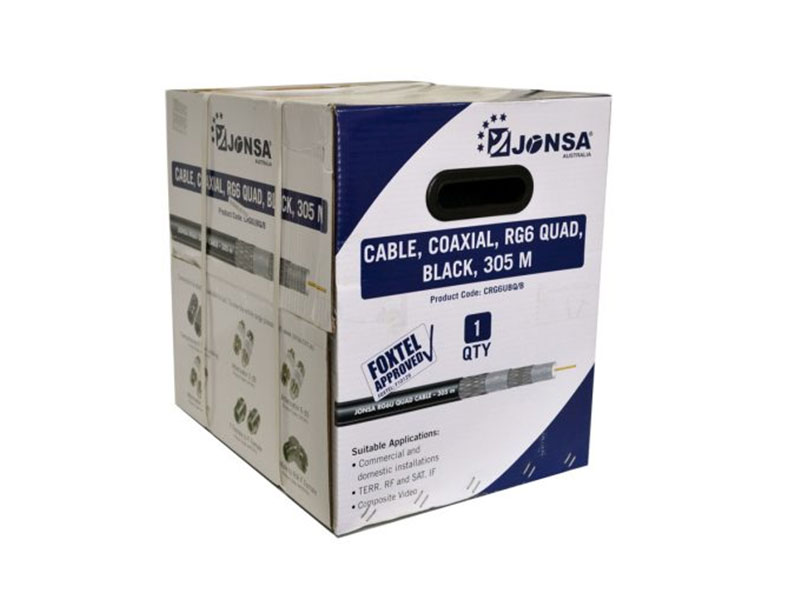

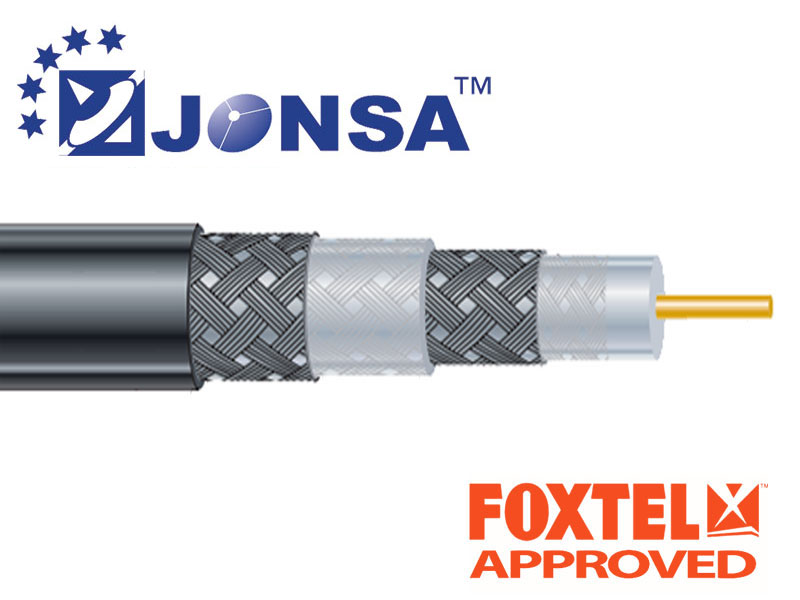

Jonsa CRG6UBQ/B RG6 Quad Shield Coaxial Cable Black 305m in Reelex Box
Specifications
Specifications CRG6UBQxx
Centre Conductor Material Copper Clad Steel Wire
Diameter (mm) 1.02 ± 1% (AWG18)
Dielectric Material Foamed HD Polyethylene
Diameter (mm) 4.57
Laminated Shielding Tape (LST) Material Laminated Aluminium Foil
Thickness (Microns) 60
Core Diameter LST + Dielectric (mm) 4.78 ± 0.13
Inner Braid Material Aluminium Alloy Wires
Minimum Braiding Coverage (%) 60
Outer Braid Material Aluminium Alloy Wires
Minimum Braiding Coverage (%) 40
Sheath (Jacket) Material PVC / (PE)
Thickness (mm) 0.86
Overall Diameter (mm) 7.54 ± 0.2
Messenger Material –
Thickness (mm) –
Attenuation @ 20 °C (dB/100 m) 5 MHz 1.9
55 MHz 5.25
211 MHz 10
250 MHz 10.82
270 MHz 11.04
300 MHz 11.64
330 MHz 12.26
350 MHz 12.63
400 MHz 13.61
450 MHz 14.43
500 MHz 15.29
550 MHz 16.08
600 MHz 16.73
750 MHz 18.54
870 MHz 20.04
1000 MHz 21.49
1300 MHz –
1450 MHz 26.25
1550 MHz –
1750 MHz 28.67
1770 MHz –
2050 MHz 31.04
2400 MHz 34.50
Foxtel Approval: F10129
