Description
Kingray Tap for Multistacker
The Kingray passive taps are designed to cover the Terrestrial and Satellite Bands from 5-2400MHz
Foxtel Approved
Specifications
| Sciteq SKU | 503212 | 503215 | 503214 | 503415 | 503420 | 503816 |
| Model | KT212F | KT215F | KT412F | KT415F | KT420F | KT816F |
| Frequency Range | 5-2400MHz | |||||
| Ports | 2 | 2 | 4 | 4 | 4 | 8 |
| Insertion Loss (dB) | ||||||
| 40-1000MHz | 2.0 | 2.0 | 4.0 | 3.0 | 2.2 | 4.0 |
| 1000-1750MHz | 2.5 | 2.5 | 4.5 | 3.5 | 2.5 | 4.5 |
| 1750-2400MHz | 3.0 | 3.0 | 5.0 | 4.5 | 3.5 | 5.0 |
| Mutal Isolation (dB) | ||||||
| 40-1000MHz | >30 | |||||
| 1000-1750MHz | >26 | >28 | >28 | >28 | >28 | >35 |
| 1750-2400MHz | >25 | |||||
| Return Loss (dB) | >12 | |||||
| Tap Loss (dB) | 12 | 15 | 12 | 15 | 20 | 16 |
Sciteq SKU Table
Kingray KT212F 2 Way 12dB Tap 503212
Kingray KT215F 2 Way 15dB Tap 503215
Kingray KT412F 4 Way 12dB Tap 503412
Kingray KT415F 4 Way 15dB Tap 503415
Kingray KT420F 4 Way 20dB Tap 503420

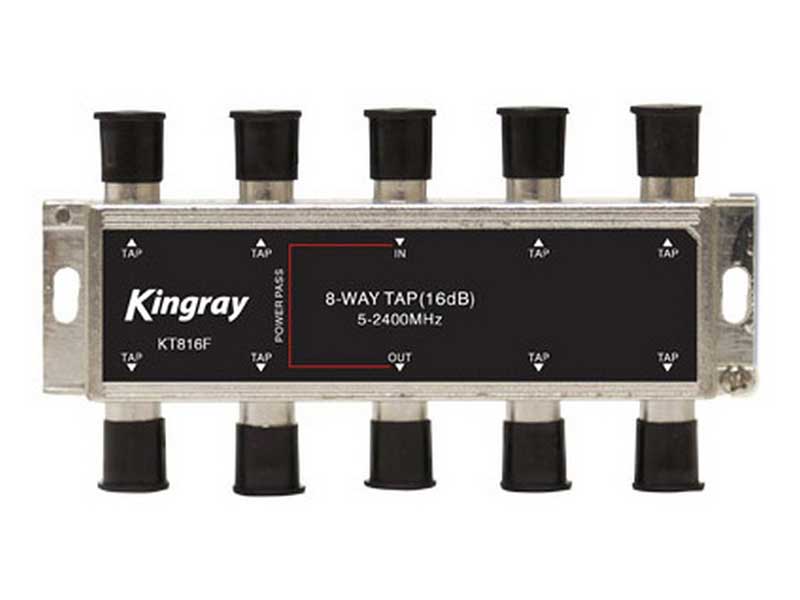

Kingray KT816F 8 Way 16dB Tap 503816
