Description

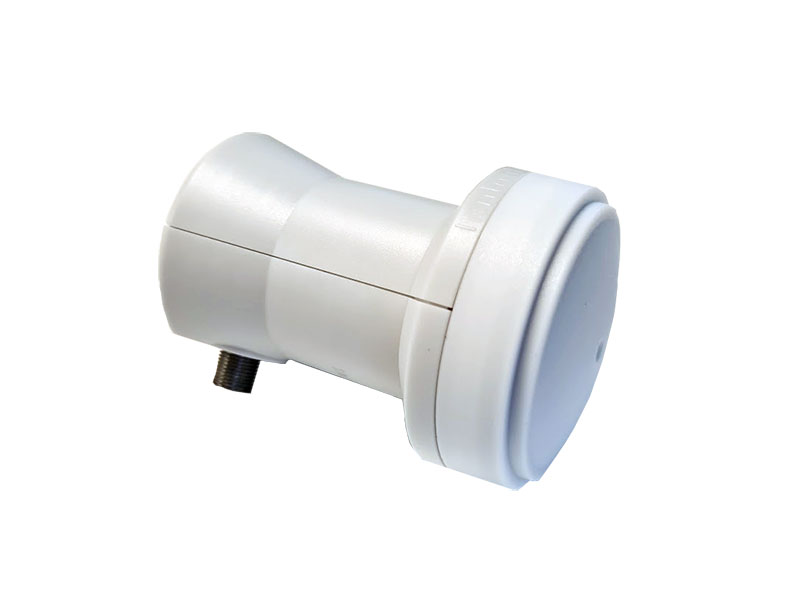

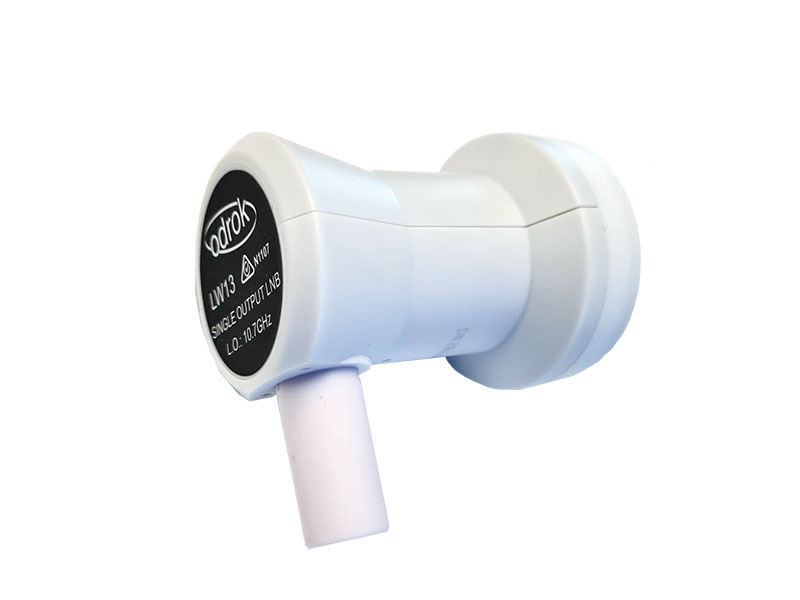

Odrok 10.7GHz Single Output Satellite LNBF
The Odrok 10.7GHz single output satellite LNBF is a standard LNBF for VAST and other satellite services. This LNBF comes with a rubber boot to ensure a weather tight connection. These LNBF are designed with a universal 40mm diameter neck to work with KU Band Satellite LNBF. During manufacturing, these LNBF are thoroughly tested in heat and cold conditions to ensure a minimal failure rate.
Specifications
Input Frequency Range:11.7-12.75GHz
Output Frequency Range: 950 – 2050MHz
Local Oscillator Frequency: 10.7 GHz
Local Oscillator Stability: <±1.5MHz (-30°C-60°C)
Phase Noise:
Noise Figure: 1dB
Conversion Gain: 60dB
Gain Flatness: ±3.0dB over 500MHz, ±1.0dB over 54MHz
Image Rejection: 45dB
Cross Polar Isolation: 25dB
Output Power @ 1dB Compression: 0dBm
Output VSWR: 2.5:1
Output Port Type: F-Female 75Ω
Reflector Type: Optimised for Offset Feed dish with F/D ration 0.45-0.7
LNB Supply Voltage: Vertical 11-14VDC Horizontal: 16-20VDC
Current Consumption: 140mA (170mA Max)
Working Temperature: -30°C – +60°C
Weight: 195g
