Description
Pro2 HDC6M HDMI over Cat6 Extender with IR Control and HDMI Loop out
A neat and simple high definition HDMI mini extender kit.This kit extends your high definition AV sources from Blu-ray DVD Players, PS3 and XBOX, etc. up to a maximum of 50m via single solid CAT5E/ 6 cables through the wall cavities. The EDID feature increases its compatibility with players or displays. It supports a full 1080P high definition and integrates an infra-red control extender forfull controllability from the receiving end. RJ45 connections on the rear of both units make it for easy connection.

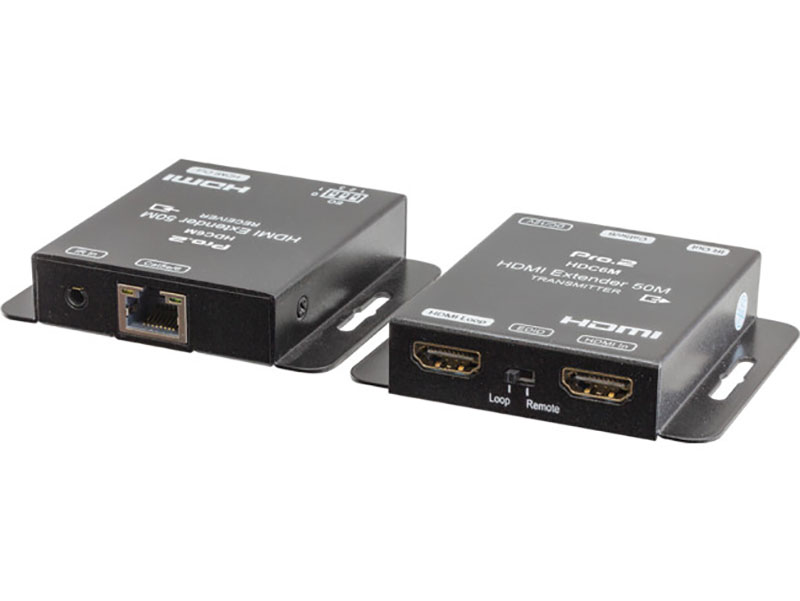

With local HDMI loop out on the transmitter, the device enables local viewing function. Which means you can view thevideo source locally as well as on the extended end.

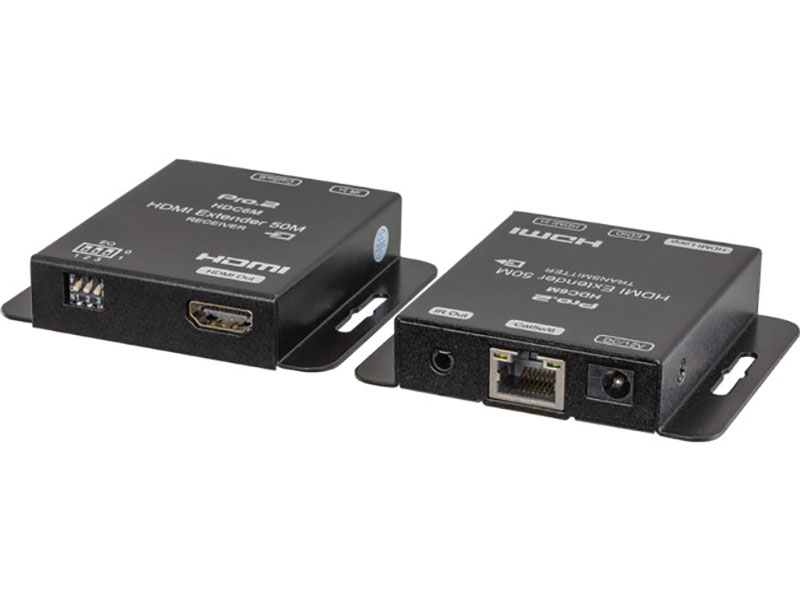

Compared with the popular model, HDC6L, the compact design makes it easy to be mounted to the back of your TV and the new power over cable feature means it only requires one power supply at the transmitter end, no power supply is required at the receiver, which makes the installation even easier.
REQUIRES IEEE-568B CABLE TERMINATION STANDARDS AND SOLID CORE CABLE. USE SOLID/FTP CAT5/6 CABLES.
If you are running a cable 15 metres or more, make sure you use a SOLID CAT5/6 cable. This product may not workwith standard stranded ethernet cable. See related items forcabling that will work this product. 60m distance has been tested fine on F/UTP solid cat6 cable.
FYI: Most of the pre-made cat5/6 leads on the market are stranded cable not solid.
FEATURES
- Compact size, easy mount;
- Supports 1080P 60HZ@YUV 4:4:4;
- Transmits HDMI Audio/Video Signals and IR over a 50m single solid Cat5e/6 Cable;
- Local HDMI loop out on the transmitter;
- Power over cable, one power supply required on the transmitter;
- EDID control, copy local or remote EDID settings with the flick of a switch;
- Distance switch, DIP switch to set network cable distance up to 50m;
- HDCP compliant;
- Supports 24bit Deep Colour;
- Supports PCM, Dolby True-HD, DTS-HD master audio;
- Audio sampling rate up to 48KHz, support 7.1 channels;
- Supports 3D video format;
- Follows IEEE-568B cable termination standards and solid cables are preferred.
- Foxtel IQ2/IQ3/IQ4 Compatible

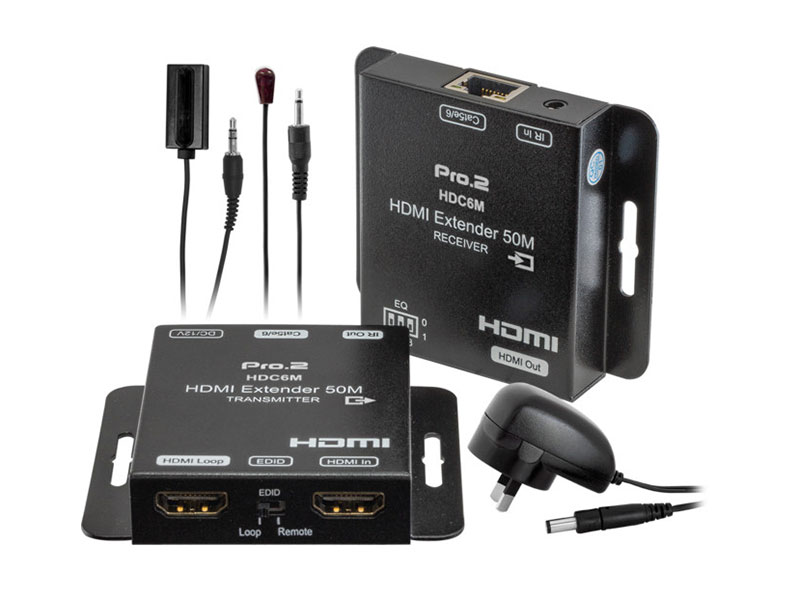

WHAT IS IN THE BOX?
- Transmitter x 1
- Receiver x1
- IR emitter x 1
- IR receiver x 1
- DC12V 1A power supply x 1
- Manual x 1
Specifications
Transmission Distance 1080p up to 50m*
Operating Temperature Range −5 to +35°C
Operating Humidity Range 5 to 90% RH (No Condensation)
Data transfer speed 6.75Gbps
Connectors HDMI Receptacle x 2
RJ45 Receptacle x 2
Power DC Receptacle x 2
3.5mm stereo Receptacle x 2(for IR TX and RX cable)
Resolution outputs 1080p/1080i/720p/576p/480p/576i/480i
Video colour bit supported 24bit
Audio format supported DTS-HD Master Audio, Dolby True HD, multi-channel 5.1, stereo etc
Output Video Signal HDMI + HDCP
Dimensions (HxWxD) 65 x 24.1 x 85mm
Power supply 5V DC Power supply (Included)
Power consumption 1.5W(MAX) (TX:0.5W,RX:0.3W)
Net Weight 319g
IR wavelength & frequency Wavelength: 940nm IR Frequency: 38KHz – 56KHz
*Note: 50m distance is under perfect transmission conditions including straight cable runs with no electrical interference, bends, kinks, patch panels or wall outlets.
