Description

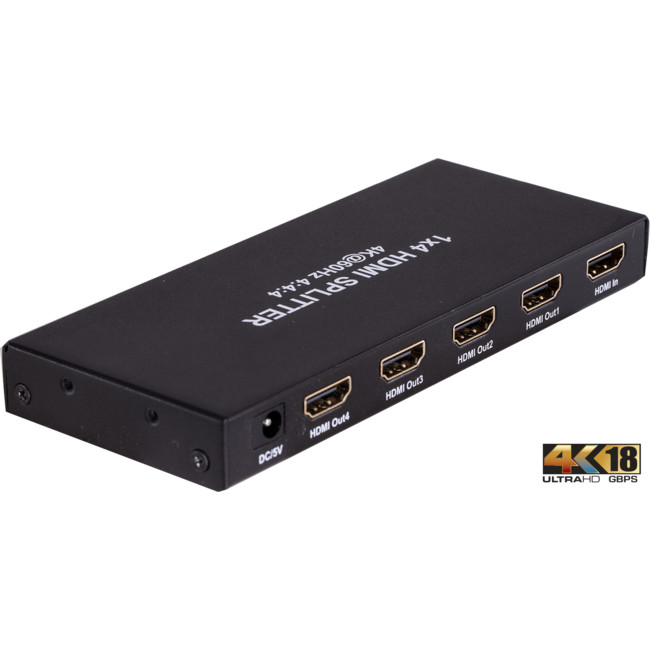

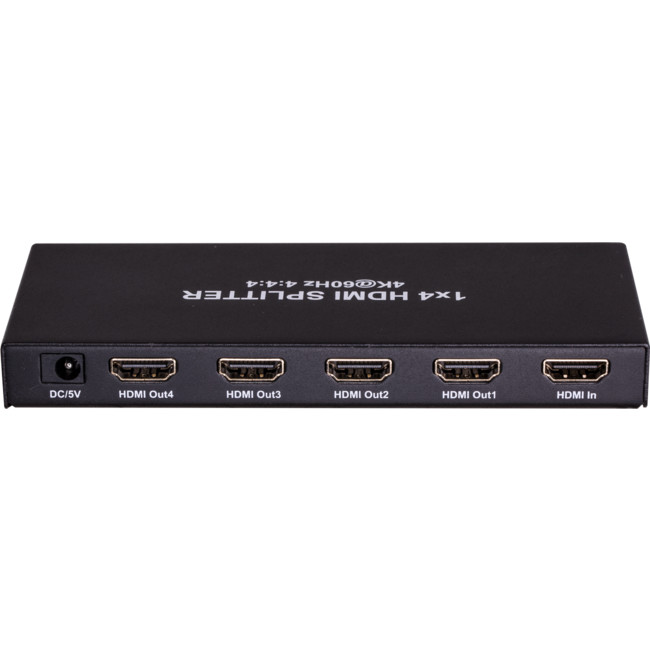

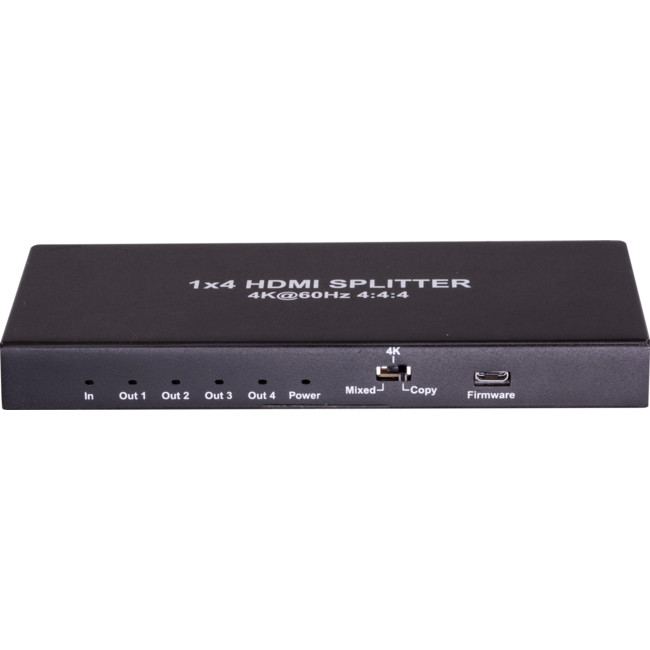

Pro2 HDMI4SPV2 4 Way HDMI Splitter HDCP2.2 18Gbps
Pro2’s high quality HDMI splitters take a single signal input — Bluray, HD TV, PayTV (Foxtel), Xbox 360, PlayStation 3 etc. — and split them to multiple outputs without any signal loss. This state of the art 4K HDMI 2.0 UHD splitter is capable of displaying resolutions up to 3840 x 2160. It is ideal for today’s 1080p 3D signals and is future proofed for many years to come.
Our range provides an ideal solution from a simple home installation up to a massive 16 monitor commercial installation. All models come in a robust metal case that is made up of a solid construction that is built to last.
The Pro2 HDMI splitters are also powered, meaning they also help you extend your cable runs by equalizing your signals and re-clocking them before passing them onto the displays.
Specs
- Supports HD TV resolutions up to 4Kx2K@30Hz 24bit RGB/YcbCR 4:4:4/YCbCr 4:2:2 and up to 4Kx2K@60Hz 12bit YCbCr4:2:0 & 3D up to 1080p@60Hz
- Deep colour: 36 bit
- Supports multi-channel digital audio formats: DTS-HD Master Audio, Dolby TrueHD, LPCM7.1 channel audio formats
- Built-in EDID simulator and HDCP key-set allows each output to work independently when connecting to an HDMI display
- Total transmission distances of 15m supported
- Maximum bandwidth: 18 Gbps
- Support 3D
- Support HDR
| Model | HDMI2SPV2 | HDMI4SPV2 | ||
|---|---|---|---|---|
| Code | 64510014 | 64510024 | ||
| Description | 2-WAY SPLITTER | 4-WAYSPLITTER | ||
| HDMI Inputs | 1 | 1 | ||
| HDMI Outputs | 2 | 4 | ||
| 3DSupport |  |
|
||
| 4K x 2K | |
|
||
| HDCP Compliance | v2.0 | v2.0 | ||
| HDMI Resolutions | 480p / 720p / 1080i / 1080p @ 60 Hz / 4K x 2K @ 24 Hz4K x 2K out @60G YUV4:4:4 |
480p / 720p / 1080i / 1080p@ 60 Hz / 4K x 2K @ 24 Hz4K x 2K out @60G YUV4:4:4 |
||
| Audio Formats | LPCM / Dolby-AC3 / DTS 7.1 / DSD |
LPCM / Dolby-AC3 / DTS 7.1 / DSD |
||
| Data Transfer Speed | 18 Gbps | |||
| Input Video signal | 5.0 Volts P-P (TTL) Single Link | 5.0 Volts P-P (TTL) Single Link | ||
| Video Amplifier Bandwidth | 140 MHz | 140 MHz | ||
| Transmission Distance | 15 metres using standard 26AWGcable | |||
| Power Supply (included) | 5V 1A DC | 5V 2ADC | ||
| Dimensions | 93.6 x 61 x 15 mm | 150 x64.2 x 17 mm | ||
| Weight | 120g | 245g | ||
| Power Consumption | 1 W | 2 W | ||
| Operating Temp. Range | -15°C to 55°C (23°F to 95°F) | |||
| Operating Humidity Range | 5 to 90% RH (no condensation) | |||
