Description

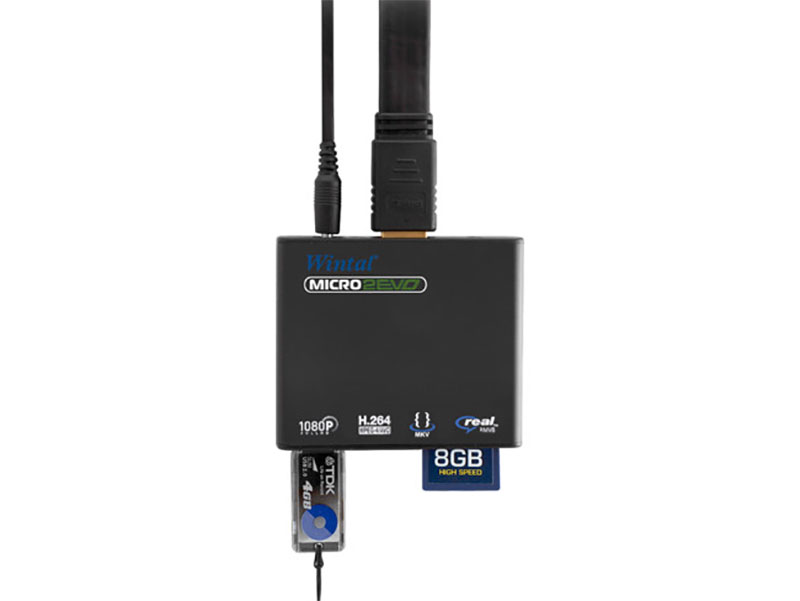

Wintal MICRO2EVO 1080P Mini Media Player
1080P UPSCALING HD MULTI MEDIA PLAYER
Connect the Micro2EVO to a HDTV via a simple HDMI connection and enjoy high definition 1080p picture and digital sound with a large number of format support in a very small package.
FEATURES
The new evolution model has made several new features asan improvement over the Micro2 and Micro2+:
Add ON/OFF timer feature
Able to use the USB power from the TV with supplied USB to DC plug lead
Automatically resumes playback of media!
When MICRO2+ is powered off while playing media, media playback is resumed when power is reconnected unlike other players that simply return to standby
Automatic resume only works when media is located inroot folder of connected storage
New & Improved User Interface
Flash Video (FLV) Support
DVD ISO Playback
PNG Image Support
New remote with improved IR performance
Supports recordings made with the Wintal PVR10HD!
Specifications
Compact size
Only 15 mm high by 75 mm wide and 64 mm deep
Automatically resumes playback of media!
Resolution: up to 1920 x 1080p
HDMI and Composite AV outputs
DTS and Dolby Digital Down mix feature
ON/OFF timer
Video codecs:
MPEG1, MPEG2, MPEG4, XVID, DIVX, H.264, H.263, WMV/ VC-1, RMVB
Supports up to 1920×1080 (30fps)
Video file support:
MKV, AVI, TS/ TP, MP4/ MPV, MOV, VOB, PMP, RM/ RMVB, MPG, M2TS, WMV, FLV
Full support for DVD files (subtitle and audio)
Audio support:
MP3, WMA, OGG, FLAC, APE, AAC, AC3
Photo support:
JPEG / BMP / PNG / GIF
Supports 1080p photo via HDMI output to TV
Subtitle support:
SRT, SMI, SSA, SUB

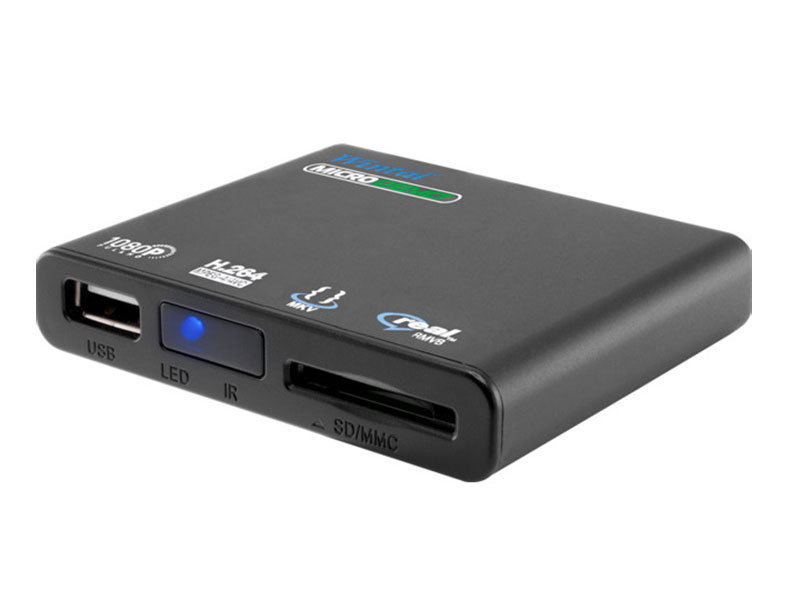

USB & SD Card Inputs
SD Cards up to 32GB supported
Max 2TB external HDD supported
File system: FAT / FAT32 / NTFS (MBR)
Mini IR remote control
CR1220 button cell battery on board (non removable)
Connections
New feature: USB type-A port on adapter allowsfor power from TV (USB lead included)
High-speed USB 2.0 host port
Connect your USB flash drives or powered external HDDs to playback supported media formats
Card Reader
SD / SDHC / MMC

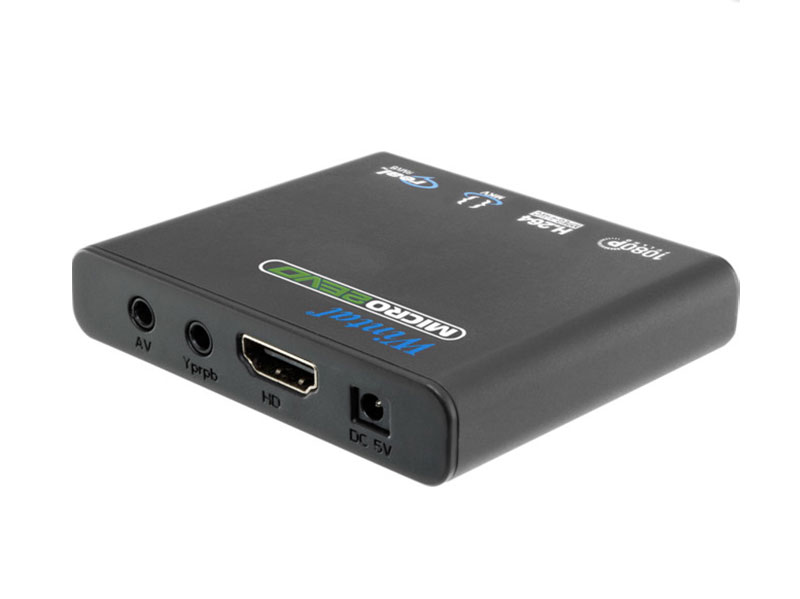

Output:
1080p HDMI
Composite AV (3.5mm to 3x RCA lead included)
3.5mm YPbPr out
DC power: 5VDC 2A (power supply included)

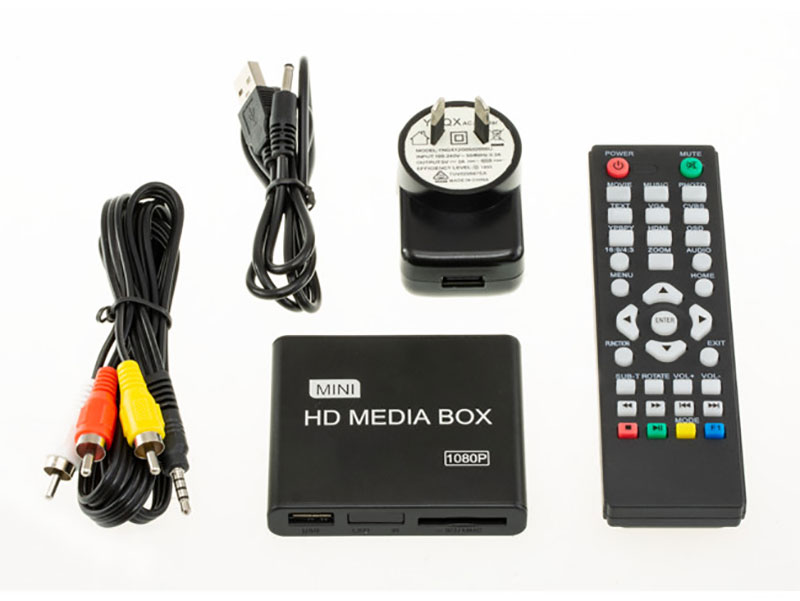

What’s in the box?
Wintal Micro2evo player
3.5mm plug to 3x RCA lead (Video + L/R Audio)
IR remote control
User manual
